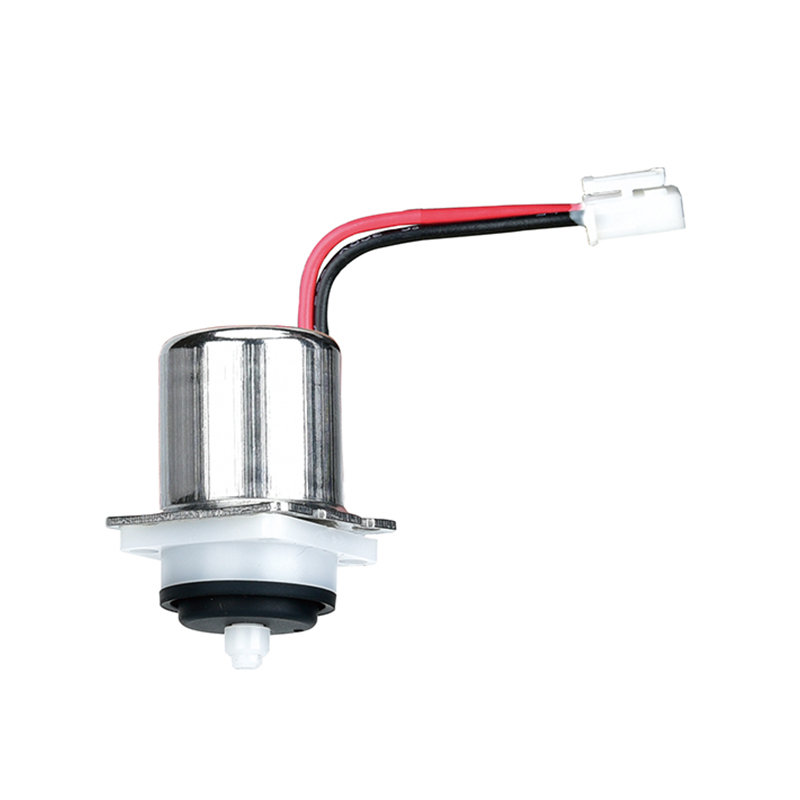

XQ-20A Water-Saving Control System Self-Locking Pulse Solenoid Valve Coil

Water saving control system self-locking pulse solenoid valve coil is an innovative water control device, designed for optimizing fluid control and saving water resources. The coil incorporates self-locking and pulse technology for efficient water-saving control. Through the self-locking mechanism, the coil maintains its original state when the power is off, ensuring the stability of fluid control. Pulse technology enables precise liquid flow control, minimizing water waste.
Applicable to various fluid control scenarios, including household, farmland irrigation and industrial applications, the device not only improves the accuracy and efficiency of fluid control, but also can significantly reduce water consumption. Its advanced technology and intelligent design enable it to adapt to different control needs, thus providing users with a reliable water-saving solution. The innovative application of the self-locking pulse solenoid valve coil in this water-saving control system provides strong support for sustainable water resources management and fluid control efficiency, and promotes the practical application of water-saving concepts in various fields.
  • Specification
  • Drawing
  • Directions
Instruction
Rated voltage DC6V
Coil resistance 17Ω+0.5Ω(20℃)
Min Current 320mA
Pulse width 30-50ms
Operating pressure 0.02Mpa~0.8Mpa
Media temperature 1℃~75℃
Responding time open≤0.15s close≤0.5s

Performance test
The strength test 1.6MPa Static pressure Withstand voltage pressure 1.2Mpa/5min
No-load test Voltage V*3.6 pulse width 50ms Permissible limiting voltage V*1.15
High water pressure startup and closing At water pressure 0.8Mpa.voltage DC4.5V,pulse width 50ms,the solenoid valve can be started and closed normally
Low water pressure startup and closing At water pressure 002Mpa.voltage DC4.5V,pulse width 50ms the solenoid valve can be started and closed normal
Leakage upon high water pressure 1.2Mpa zero leakage
Leakage upon low water pressure 0.02Mpa leakage <0.1 mL/min
Electric strength Among the conductive part,mounting hole and nonconductive metal,it can withstand 500V/50Hz leakage current
Insulation resistance The resistance between the charged part and nonconductive metallic part tested by the megohmmeter of 500V> 20MΩ
Sealing test Static pressure Air High pressure 1MPa
Low pressure 0.02MPa
Cold water High pressure 1.2 MPa
Low pressure 0.02 MPa
Hot water High pressure 0.8 MPa
 Low pressure 0.02 MPa
Service life ≥Min 1,000,000 cycles (CJ/T194-2004) ≥1,000,000


Requirements of working environment
Temp.of working envlron mlent 1℃~+60℃ Permissible limiting pressure (water pressure) ≤1.2Mpa
Humidity of working environment 35%~90%RH(No condensation state) Mounting direction it is mounted in the vertical direction,
the inclination doesn’t exceed 60 degrees
Storage temp -5~+80℃(No freezing state)
Storage humidity 25%~95%RH(No condensation state)
