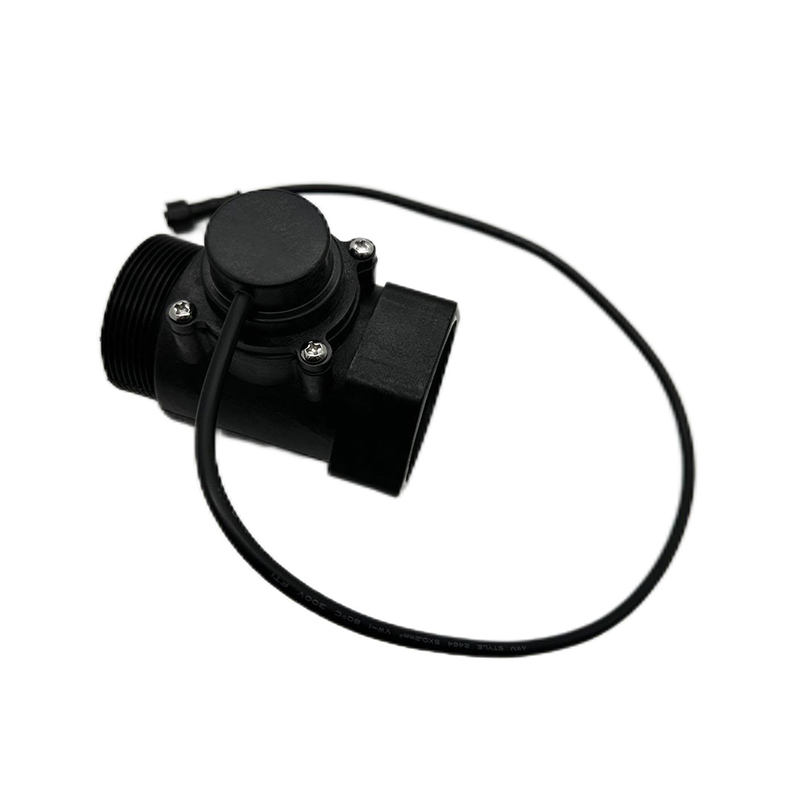

Irrigation Water Flow Pressure Sensors

The irrigation flow pressure sensor is a key device used to monitor the flow pressure of the irrigation system. It can monitor water pressure changes in pipelines in real time and transmit these data to the monitoring system for analysis and processing. This sensor has high precision and stability and can accurately measure water flow pressure to help users understand the operating status of the irrigation system. By detecting water flow pressure in time, the sensor can help users find pipe blockage, leakage or other problems, so that timely measures can be taken to repair and avoid wasting water resources and losses. In addition, the irrigation water flow pressure sensor can also be integrated with the automatic control system to achieve intelligent irrigation management and improve irrigation efficiency and water saving effects.
  • Specification
  • Drawing
  • Directions
1. Flow input voltage DC3.3v-5V
2. Flow signal for continuous frequency output, rectangular square wave, pulse signal.
3. Pressure signal for analog voltage output, currently less than 10mA. 0-3V output.Corresponding to the water pressure of 0-0.6MPA
4. Pressure input voltage is DC3.3V-5V
5. Different calibers have different flow coefficients.
6. Water pressure formula:output voltage value(V)*0.2Mpa=measured pipe pressure value.
7. Flow formula:frequency*N(coefficient)*1 tonne=measured pipe flow rate.

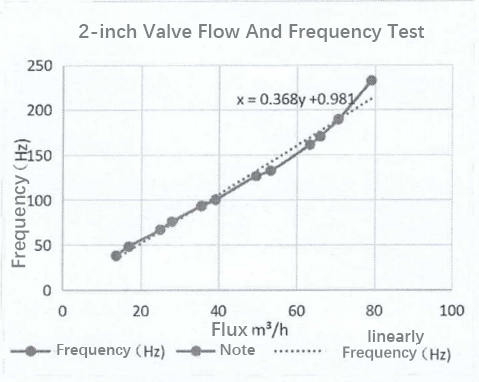

(Noted: 2 inch Sample
Flow rate formula: Q= 0.386 * f+ 0.981       Q=Flow rate< m3/h >, f=frequency< HZ >
P=Pressure< Mpa >, V=output voltage < V >        Pressure formula: P= V * 0.2
