Wholesale PSV-160

Home / Product / Irrigation Solenoid Valve / 5 Inch Irrigation Solenoid Valve / PSV-160
  • PSV-160
  • PSV-160

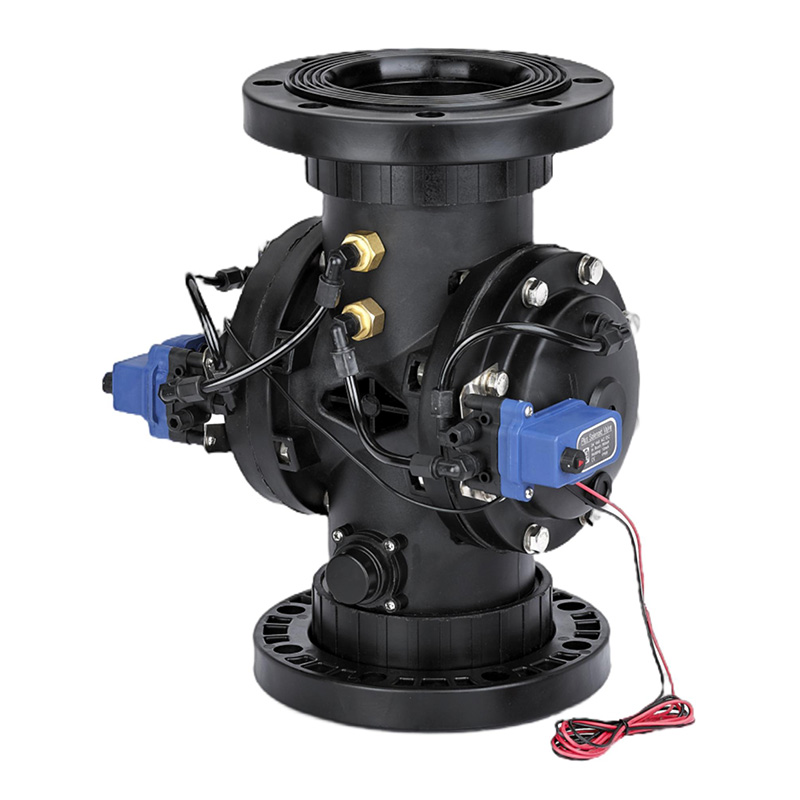

PSV-160

This product is mainly used for the conduction and shut-off of fluids in the main pipeline system, and can also be used in conjunction with pressure regulating valves to regulate fluid flow and pressure in pipelines, meeting different usage needs. The main material is nylon, which is suitable for different application environments, such as outdoor and indoor. The working medium is a mixture of water and liquid.

Backlist
  • Specification

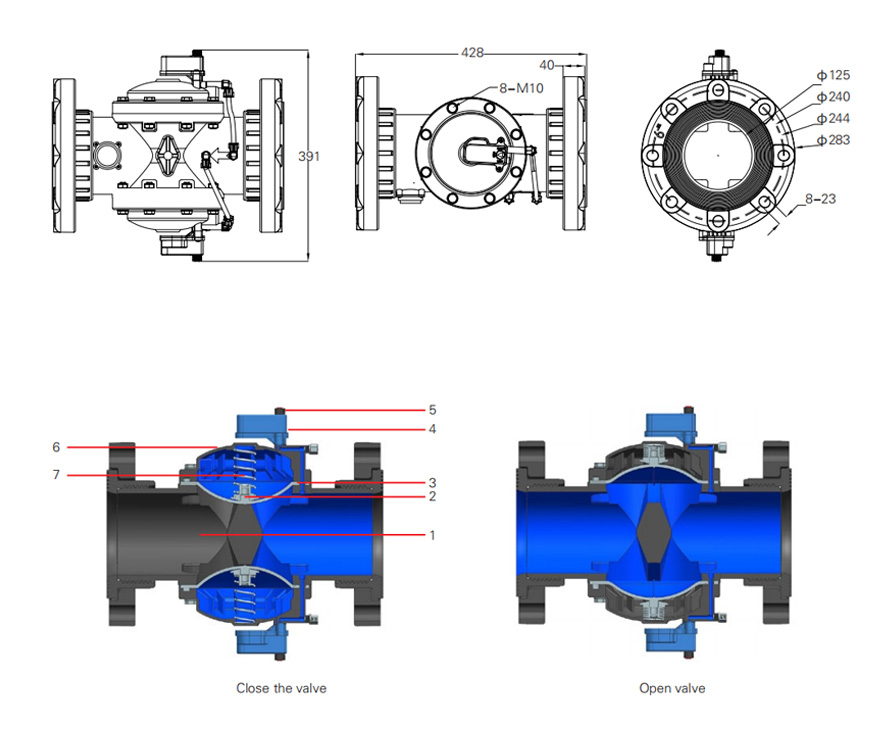

  • Drawing
  • Directions

1. The Y-shaped valve is designed with a full flow channel, which has low water loss, high flow rate, and saves energy consumption.
2. Built-in pipeline type three-channel hydraulic control, high reliability, excellent anti-clogging performance, no external pipelines, high durability, built-in filter screen easy to clean, simple maintenance, and no vulnerable parts.
The S-type valve core diaphragm adopts EPMD+composite fiber, which has excellent high-pressure, weather, high-temperature aging, and low-temperature resistance.
4. The main material is made of PA6+30% reinforced fibers, with a high-pressure water resistance of over 2.5Mpa, UV protection high-temperature exposure, and unchanged performance.
5. The controller adopts two modes, manual/automatic, with a built-in locking mechanism and micro motor gear drive, high reliability, detachable waterproof structure, simple and convenient maintenance, and greatly extended service life, reaching more than 10 years.

Caliber 6"
Control voltage AC/DC 12-24V current: < 1A
Pulse voltage: DC 3-12V
Pulse width: 300-500ms
Pulse current: 1.5A
Economic flow 80-200 tons/hour
Minimum working pressure 0.03Mpa
Maximum working pressure 1.0Mpa
Ultimate pressure ≤2.5Mpa
Installation environment temperature -30℃-70℃
Working medium temperature 0.5℃-60℃
Feedback on valve working status Switch signal output
Flow (frequency) pressure signal (analog voltage) output
Electrical interface waterproof connector/two-core cable.
