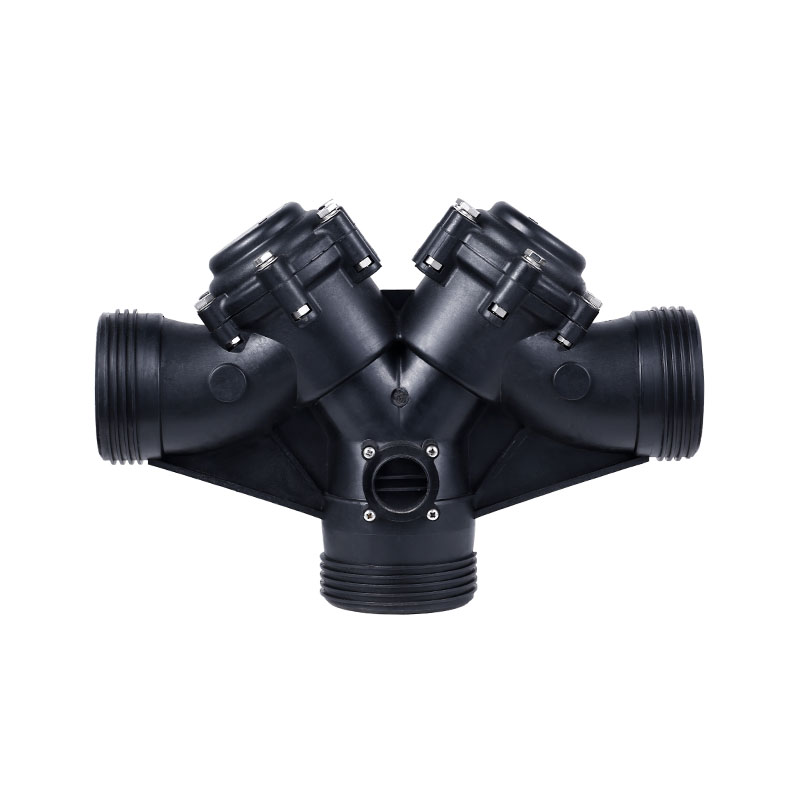

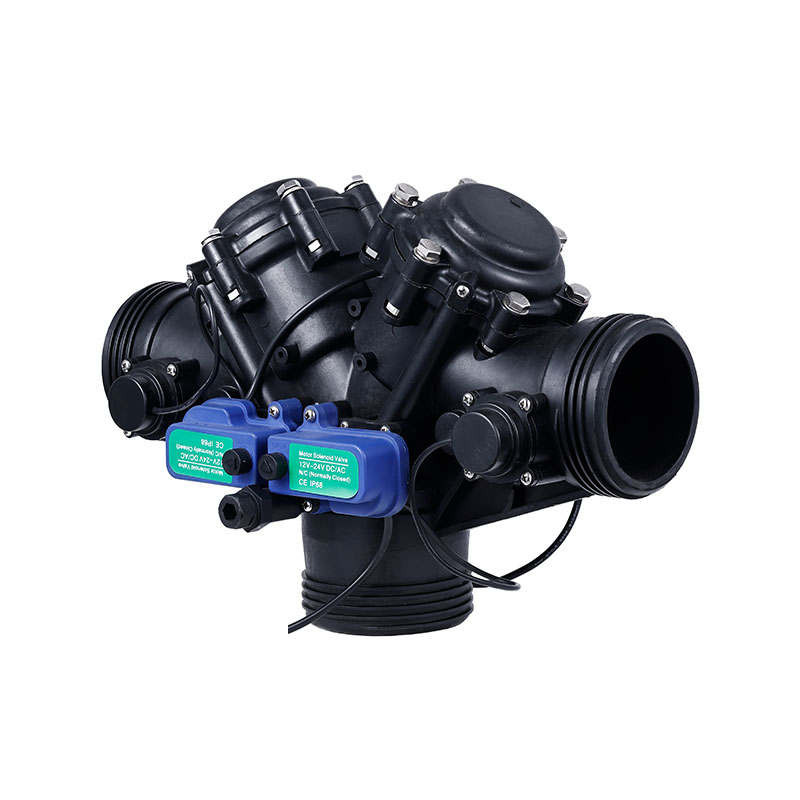

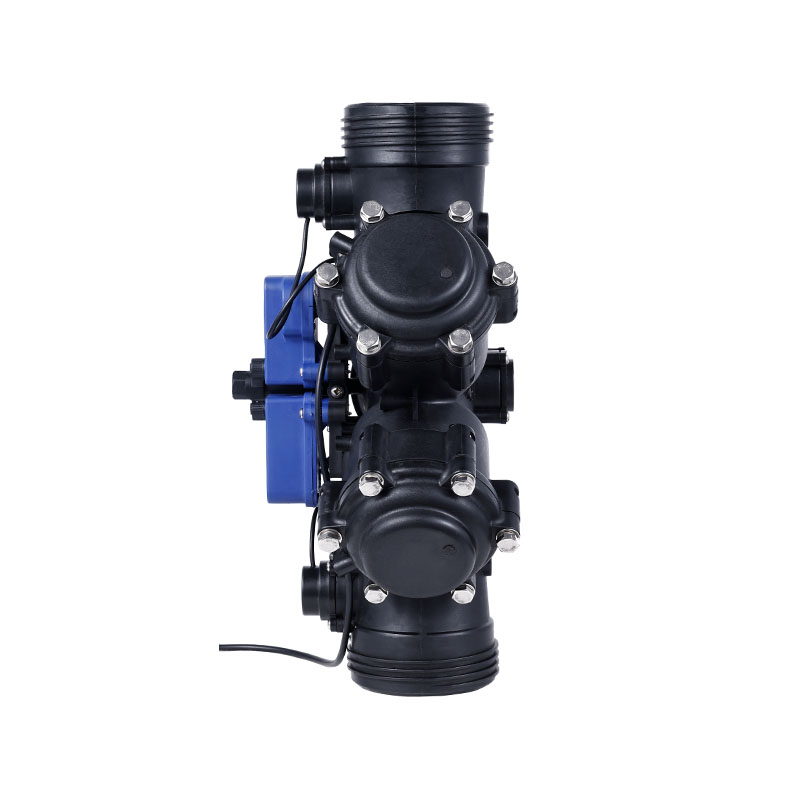

PSV-S90 3 Inch 1 Inlet-2outlet Irrigation Solenoid Valve (Male Thread)

The 3-inch 1-in-2-out irrigation solenoid valve (external thread) is an important component used in large-scale irrigation systems. This solenoid valve features a 3-inch diameter body with external threads for easy installation and connection to piping systems. Its unique 1-in-2-out structure enables it to control two irrigation pipes at the same time to realize the diversion and distribution of irrigation water and improve the efficiency and flexibility of the irrigation system. Through electromagnetic control, the valve can accurately adjust the water flow of each pipe to achieve intelligent management of the irrigation system. The durable construction and reliable performance make it suitable for long-term use in various environmental conditions, ensuring stable operation of the irrigation system. It is suitable for farmland irrigation, landscape gardens, golf courses and other occasions that require multi-channel water flow control, providing users with convenient and efficient irrigation solutions.

  • Specification

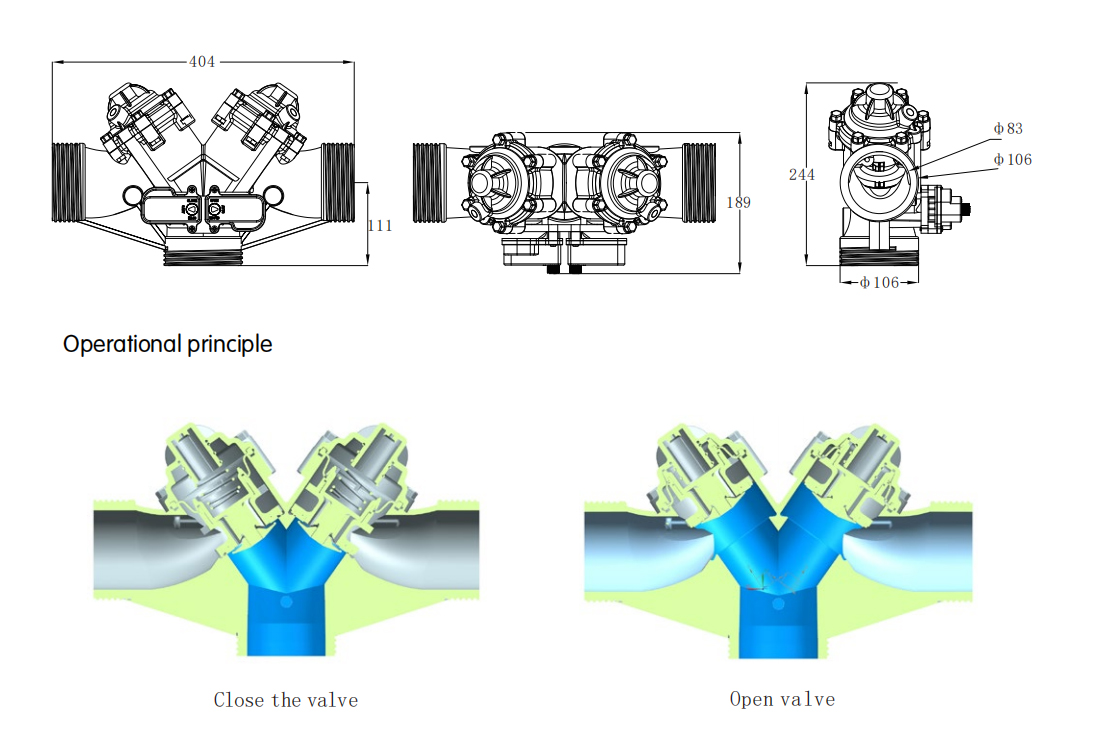

  • Drawing
  • Directions

1. The Y-shaped valve is designed with a full flow channel, which has low water loss, high flow rate, and saves energy consumption.
2. Built-in pipeline type three-channel hydraulic control, high reliability,  anti-clogging performance, no external pipelines, high durability, built-in filter screen easy to clean, simple maintenance, and no vulnerable parts.
3. The S-type valve core diaphragm adopts EPMD+composite fiber, which has high-pressure resistance, weather resistance, high-temperature aging resistance, and low-temperature resistance.
4. The main material is made of PA6+30% reinforced fibers, with a high-pressure water resistance of over 2. 5Mpa, UV protection high-temperature exposure, and unchanged performance.
5. The controller adopts two modes, manual/automatic, with a built-in locking mechanism and micro motor gear drive, high reliability, detachable waterproof structure, simple and convenient maintenance, and greatly extended service life, reaching more than 10 years.

Caliber 3"-S
Control voltage AC/DC 12-24V current: < 1A
Pulse voltage: DC 3-12V
Pulse width: 300-500ms
Pulse current: 1.5A
Economic flow 20-60 tons/hour
Minimum working pressure 0.03Mpa
Maximum working pressure 1.0Mpa
Ultimate pressure <2.5Mpa
Installation environment temperature -30℃-70℃
Working medium temperature 0.5℃-60℃
Feedback on valve working status Switch signal output
Flow (frequency) pressure signal (analog voltage) output
Electrical interface waterproof connector/two-core cable.
