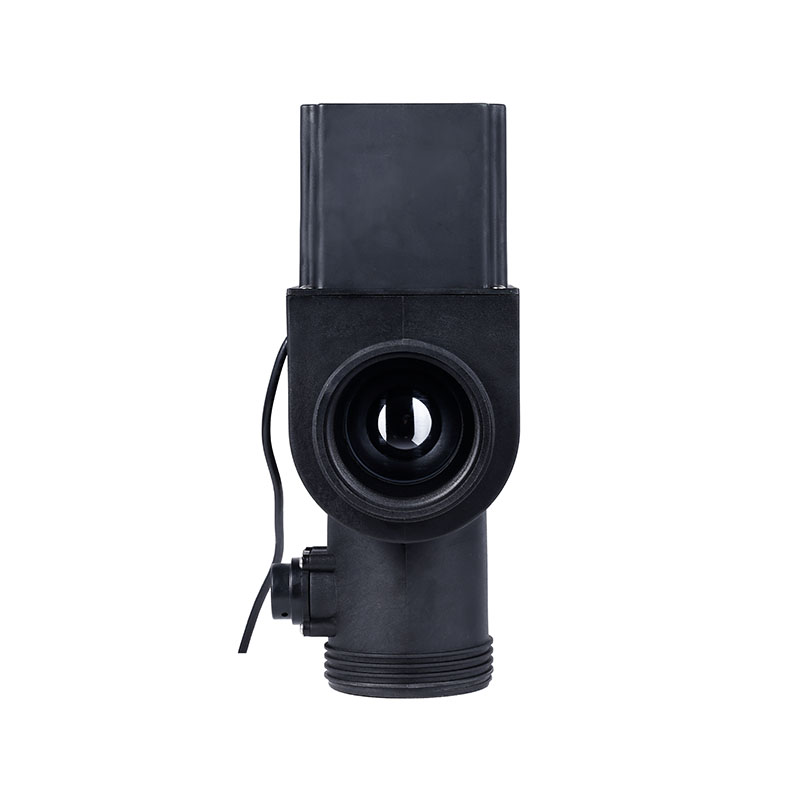

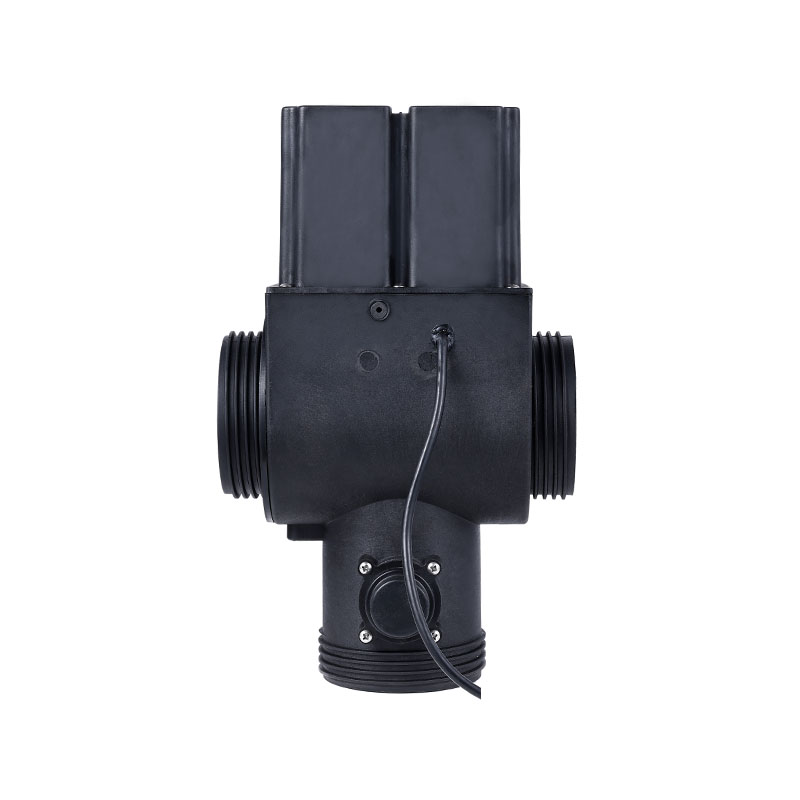

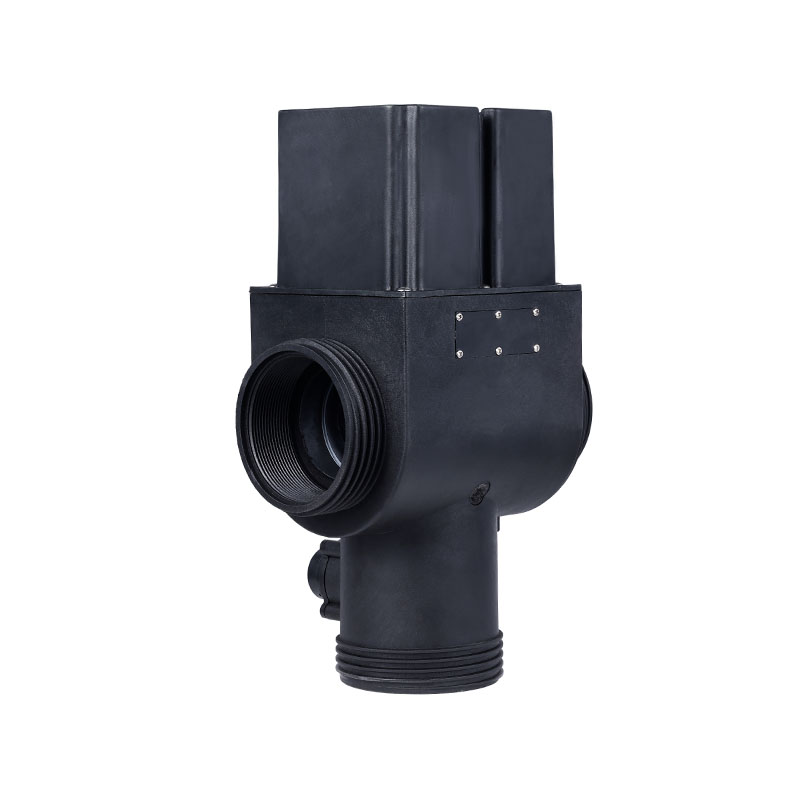

PSV-Q90 Electrical Ball Irrigation Solenoid Valve (3 Inch Male Thread)

The electric ball irrigation solenoid valve (3-inch male thread) is an important component for large irrigation systems. This solenoid valve is a ball valve design with a 3-inch diameter body and is equipped with external threads for easy installation and connection to piping systems. Its electric control system makes opening and closing operations more convenient and precise, thereby achieving effective control of irrigation water flow. The electric ball irrigation solenoid valve has the characteristics of quick response, which can immediately adjust the water flow when needed to meet different irrigation needs. The durable construction and reliable performance make it suitable for long-term use in various environmental conditions, ensuring stable operation of the irrigation system. It is widely used in farmland irrigation, landscape gardens, golf courses and other occasions that require large-flow water flow control, providing users with efficient and reliable irrigation solutions.

Backlist
  • Specification

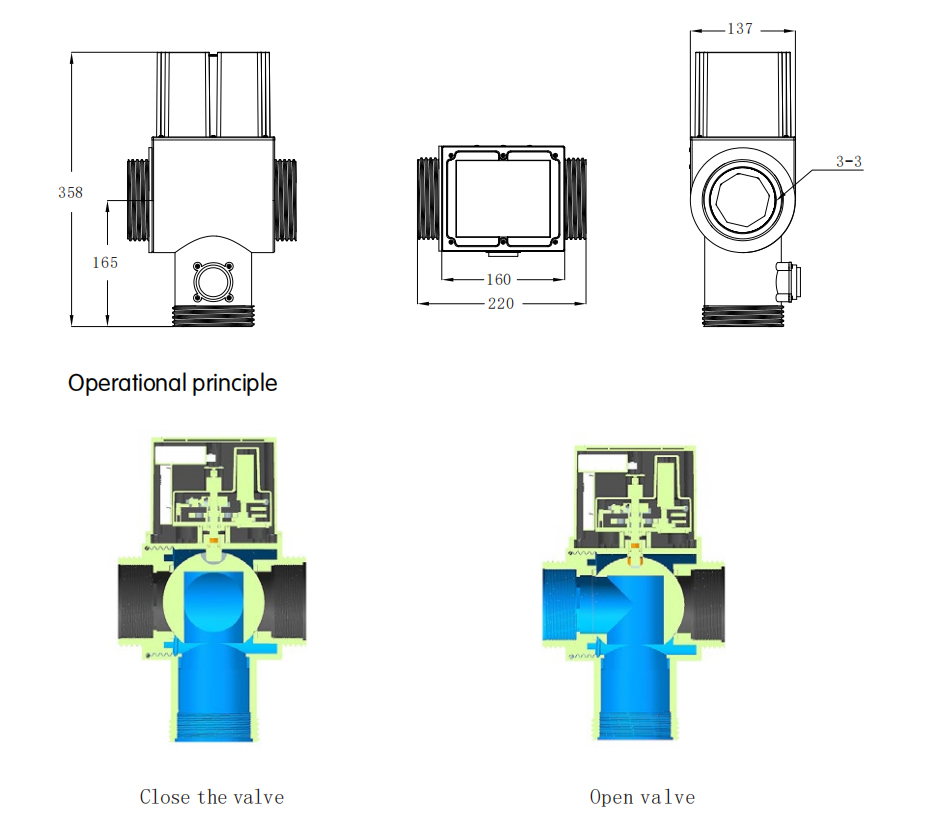

  • Drawing
  • Directions

1. The Y-shaped valve is designed with a full flow channel, which has low water loss, high flow rate, and saves energy consumption.
2. Built-in pipeline type three-channel hydraulic control, high reliability, anti-clogging performance, no external pipelines, high durability, built-in filter screen easy to clean, simple maintenance, and no vulnerable parts.
3. The S-type valve core diaphragm adopts EPMD+composite fiber, which has high-pressure resistance, weather resistance, high-temperature aging resistance, and low-temperature resistance.
4. The main material is made of PA6+30% reinforced fibers, with a high-pressure water resistance of over 2. 5Mpa, UV protection high-temperature exposure, and unchanged performance.
5. The controller adopts two modes, manual/automatic, with a built-in locking mechanism and micro motor gear drive, high reliability, detachable waterproof structure, simple and convenient maintenance, and greatly extended service life, reaching more than 10 years.

Caliber 3"
Control voltage DC 3-6V current: <1.5A
DC 6-12V current: <1.5A power:<<3w
Economic flow 20-60 tons/hour
Minimum working pressure 0.03Mpa
Maximum working pressure 1.0Mpa
Ultimate pressure <2.5Mpa
Installation environment temperature -30℃-70℃
Working medium temperature 0.5℃-60℃
Feedback on valve working status Switch signal output
Flow (frequency) pressure signal (analog voltage) output
Electrical interface waterproof connector/two core cable.
